Eleco

Three Phase Series

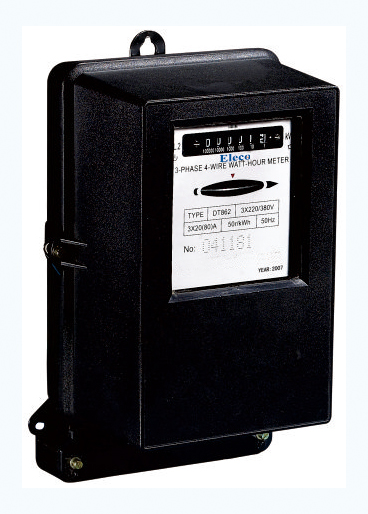

Three Phase Three Wire/Three Phase Four Wire Active (Reactive) Electromechanical Energy Meters with the Optional Maximum Demand Indicator is an A.C. induction electrotechnical meter. The electromagnetic components of the meter are arranged in horizontal position, and the electromagnetic parts are separated one from the other. The voltage core of semi-enclosed and plugin type is used. The core of the electromagnetic components is made from high grade silicon steel sheet, and the voltage coils are encapsulated with thermoplastic materials, so the meter has a good compatibility of electrical property, stability and low consumption. Double jewel or magnetic bearing is used in the bearing system. The register consists of five or seven cyclometer or jumping type drums, and the bi-directional register can be provided in order to prevent rotation reversal on request. The material of register gear can be metal or delrin. The material of meter base can be metal, bakelite or polycarbonate. The material of meter cover can be metal, ABS, polycarbonate or bakelite. The material of terminal block can be bakelite or polycarbonate with 10% glassfiber. The material of extended terminal block cover can be metal, ABS, polycarbonate or bakelite. Meter frame is formed by die-casting aluminum alloy, and then undergoing heating process to ensure the meter has the advantages of high mechanical strength and stability in construction.

Catalog:

Download(PDF File)
